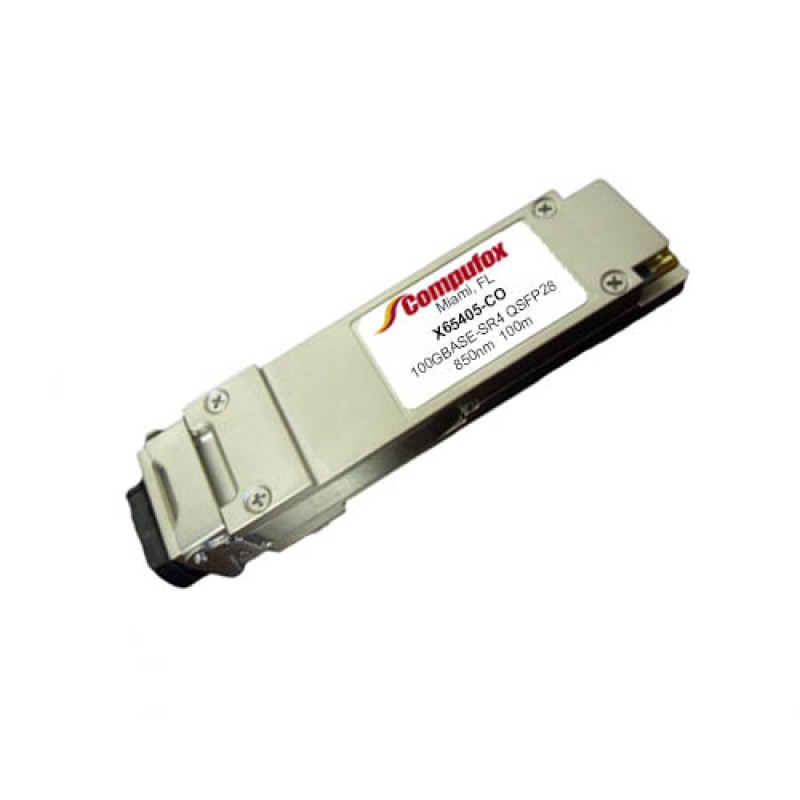

NetApp X65405 Compatible 100GBase-SR4 QSFP28 Transceiver (MMF, 850nm, 100m, MPO, DOM)

$85.00

  • Product Code: X65405-CO
  • Availability: In Stock

Available Options

NetApp X65405 Compatible 100GBase-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MPO, DOM).


Specifications

Form Factor

QSFP28

Data Rate

100Gbps

Wavelength

850nm

Distance

70m@OM3/100m@OM4

Connector

MTP/MPO-12

Media

MMF

Transmitter Type

VCSEL 850nm

Receiver Type

PIN

TX Power

-8.4~2.4dBm

Minimum Receiver Power

-10.3dBm

Powerbudget

1.9dB

Receiver Overload

2.4dBm

Typical Power Consumption

≤2.5W

Extinction Ratio

3dB

DDM/DOM

Yes

Bit Error Ratio (BER)

1E-12

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI
