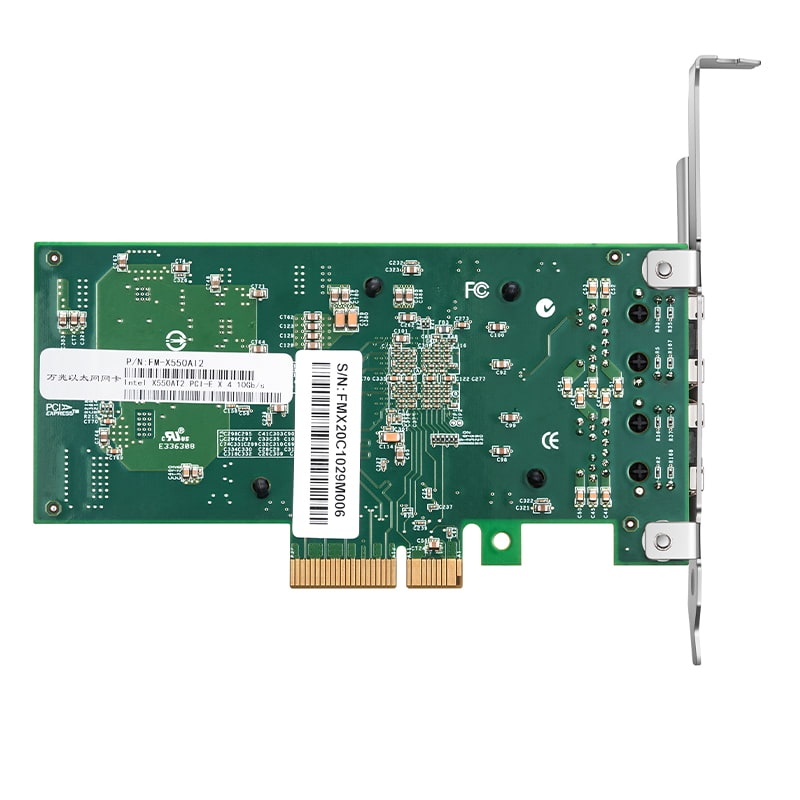

10GBase-T Dual Copper Port Intel X550-AT2-BASED Low Latency Ethernet Network Interface Card
$289.00
- Product Code: X550AT2-2TP
- Availability: In Stock
10GBase-T Dual Copper Port Intel X550-AT2-BASED Low
Latency Ethernet Network Interface Card
This dual-port 10Gb network interface card (NIC) is
optimized on Intel X550AT2 controller for server connectivity and network
virtualization. By supporting a PCIe 3.0 x4 host interface, this adapter
provides sufficient bandwidth for line rate traffic on dual 10Gb ports.
Improved support for virtualization, including VMDq and
SR-IOV, makes the NIC a perfect fit for virtualized environments. It is
designed to provide broad interoperability, critical performance optimizations,
and increased agility for communications, cloud, and enterprise IT network
solutions.
Product Highlights
- Backward compatible with existing 1000BASE-T networks
- Flexible port partitioning and quality of service (QoS)
of up to 64 virtual ports
- Advanced Storage Over Ethernet including iSCSI, NFS and
FCoE
- Low-cost and low-power 10GbE performance for the entire data center
- Data Plane Development Kit (DPDK) Optimized for
Efficient Packet Processing
Specifications
Ports
Dual
Controller
Intel X550-AT2
Supported Ethernet Speeds
100M/1G/10GBase-T
Host Interface
PCIe 3.0 x4
Cabling Type
RJ-45
Link Rate
8.0 GT/s
Connectivity (VT-c)
Yes
OS Support
Windows, Linux, VMware, FreeBSD
Bracket Height
Tall & Short
Max. Power Consumption
13W
Storage Humidity
90% max. non-condensing relative humidity at 35ºC
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity
85% max. non-condensing relative humidity
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Card PCB Dimensions (WxD)
5.91"x2.68" (150x68mm) (without bracket)
RoHS R6 Compliant
Yes
Controller | Intel X710-BM2 | Intel XL710-BM2 | Intel XXV710-AM2 | Intel X550-AT2 | Intel XL710-BM1 | Intel 82599ES |
Supported Ethernet Speeds | 10/1GbE | 40/10/1GbE | 25/10/1GbE | 10/1GBase-T/100M | 10/1GbE | 10/1GbE |
Ports | Dual-Port | Dual-Port | Dual-Port | Dual-Port | Quad-Port | Dual-Port |
Systems Interface Type | PCIe 3.0 x8 (8.0 GT/s) | PCIe 3.0 x8 (8.0 GT/s) | PCIe 3.0 x8 (8.0 GT/s) | PCIe 3.0 x4 (8.0 GT/s) | PCIe 3.0 x8 (8.0 GT/s) | PCIe 2.0 x8 (5.0 GT/s) |
On-chip QoS and Traffic Management |  | | | | | |
SR-IOV | | | | | | |
Fiber Channel over Ethernet | — | — | — | | — | |
Intelligent Offloads | | | | | | |
MSI-X | | | | | | |
VMDq | | | | | | |
ISCSI Acceleration | | | | | | |
Network Virtualization Offload of VXLAN, GENEVE and NVGRE Overlay Networks | | | | | | |
