PCIe x1 4-port USB 3.0 Type-A USB Host Card
$9.50
- Product Code: PX1-U30-4A-201V
- Availability: In Stock

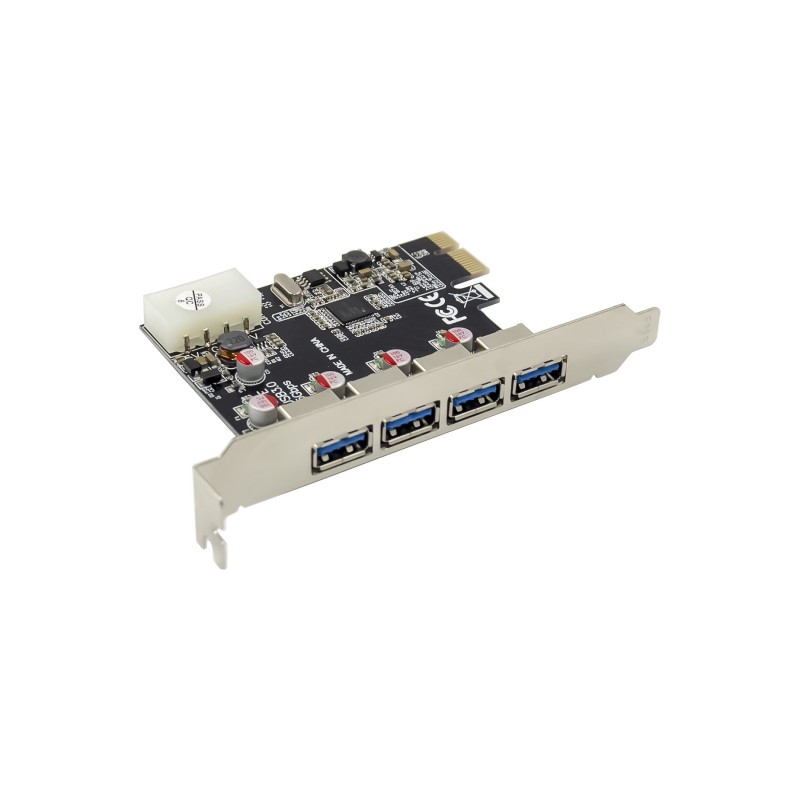

The PX1-U30-4A-201V PCI Express USB 3.0 Card (with 4-pin IDE Power Connector) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Features
- Fully compliant with PCI Express Base Specification Revision 2.0
- Single-lane (x1) PCI Express throughput rates up to 5 Gbps
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
- External 3x USB3.0 port, Internal 1x USB3.0 port
- Built-in 4-pin power connector for receiving extra power supply from system
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
- Support Windows® XP/Vista/7 /8/8.1(32/64 bit)，linux
Specifications
- Interface: PCI-Express x1
- Connectors: 4 x USB3.0 Connectors
- System Requirements
- Windows XP, VISTA, 7 .8.8.1and Server 2008 Release 2 /Linux
- Available PCI-Express X1 slot
Package Contents
- 1x PCI-Express USB3.0 4 PORTS
- 1x User Manual
- 1x Driver CD
