PCIe x1 4-port USB 3.0 Type-A USB Host Card with NEC720201 Chipset
$11.00
- Product Code: PX1-U30-4A-201H
- Availability: In Stock

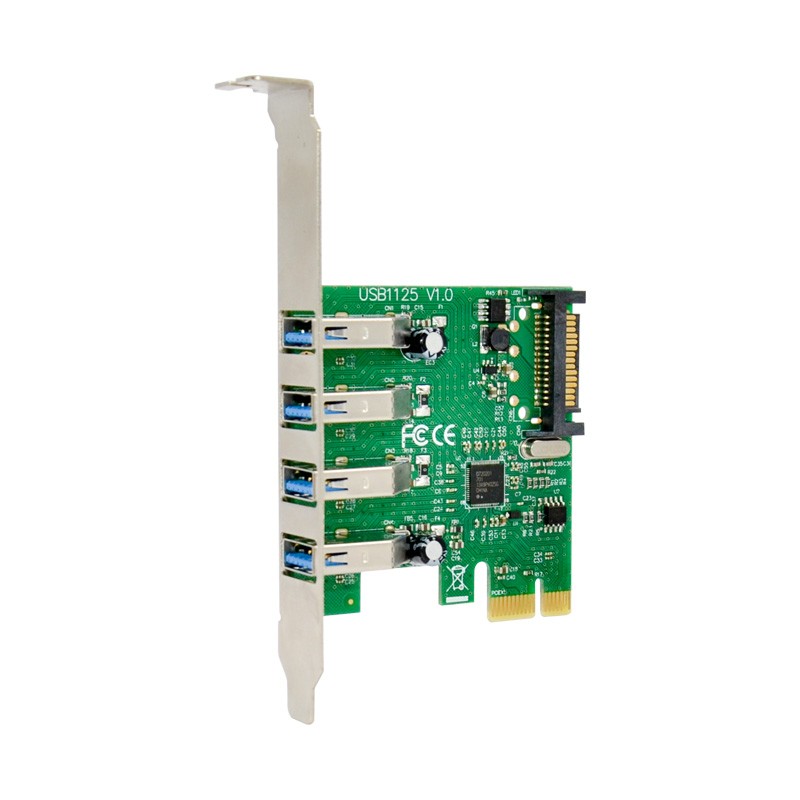

The PX1-U30-4A-201H PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 Type-A ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Features
- 4 external USB 3.0 Type-A ports in a stacked layout
- UASP support for more efficient data transfer
- Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
- Optionally provides up to 900mA per USB port
- Built-in optional SATA power connector for bus-powered USB devices
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Compliant with PCI Express 2.0 specifications
- Includes a Low Profile/half-height installation bracket
Specifications
- Chipset: NEC 720201
- Host Bus: PCI Express xl
- Connectors
- 4x 9-pin USB 3.0 Type A, Female
- 1x 15-pin SATA power connector
- Version: PCI Express 2.0
- Compliant with USB 3.0 Specification
- USB data transfer rate: Up to 5Gbps
- Per port over-current protection
- USB power output: Up to 5V/900mA
- SATA power connection is required
- OS Compatibility
- Windows® XP, Vista, 7, 8, 8.1, 10
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
- Environmental Conditions
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
Package Contents
- PCI Express USB 3.0 Card
- Low Profile Bracket
- Driver CD
- Instruction Manual
