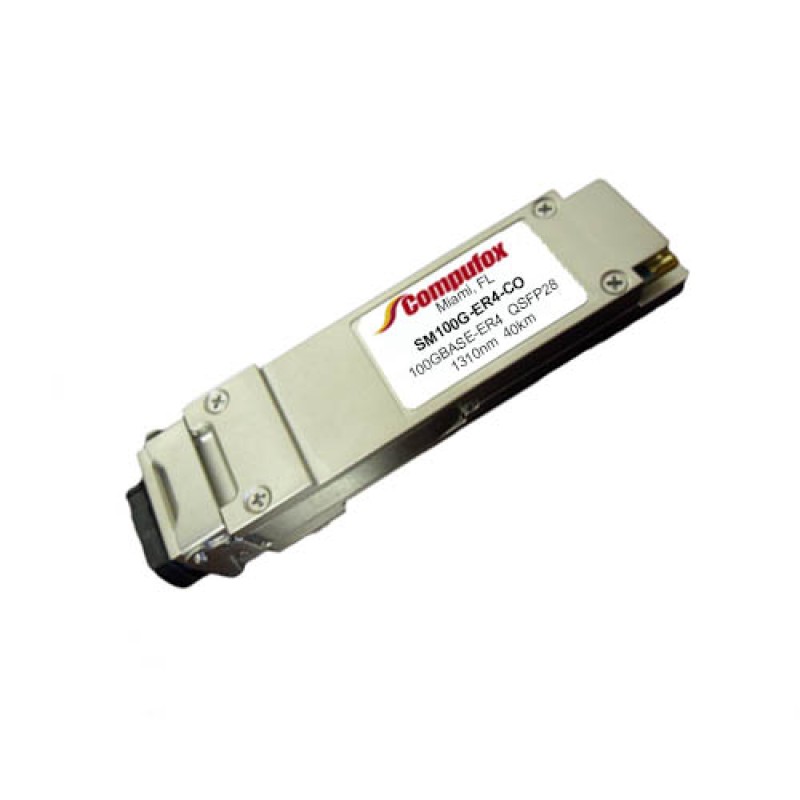

Chelsio SM100G-ER4 Compatible 100GBase-ER4 QSFP28 Transceiver (SMF, 1310nm, 40km, LC, DOM)
$1,495.00
- Product Code: SM100G-ER4-CO
- Availability: In Stock
Available Options
Chelsio SM100G-ER4 Compatible 100GBase-ER4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM).
Specifications
|
Form
Factor |
QSFP28 |
Data
Rate |
100Gbps |
|
Wavelength * |
1310nm
|
Distance
* |
40km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
4x
EML |
Receiver
Type |
APD |
|
TX
Power |
-2.9~4.5dBm |
Minimum
Receiver Power |
-20.9dBm |
|
Powerbudget |
18dB |
Receiver
Overload |
-4.9dBm |
|
Power
Consumption |
≤4.5W |
Extinction
Ratio |
>4dB |
|
DDM/DOM |
Yes |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
QSFP28
MSA Compliant |
* Lane Center Wavelengths Range:
L0 1295.56nm (1294.53-1296.59nm)
L1 1300.05nm (1299.02-1301.09nm)
L2 1304.58nm (1303.54-1305.63nm)
L3 1309.14nm (1308.09-1310.09nm)
