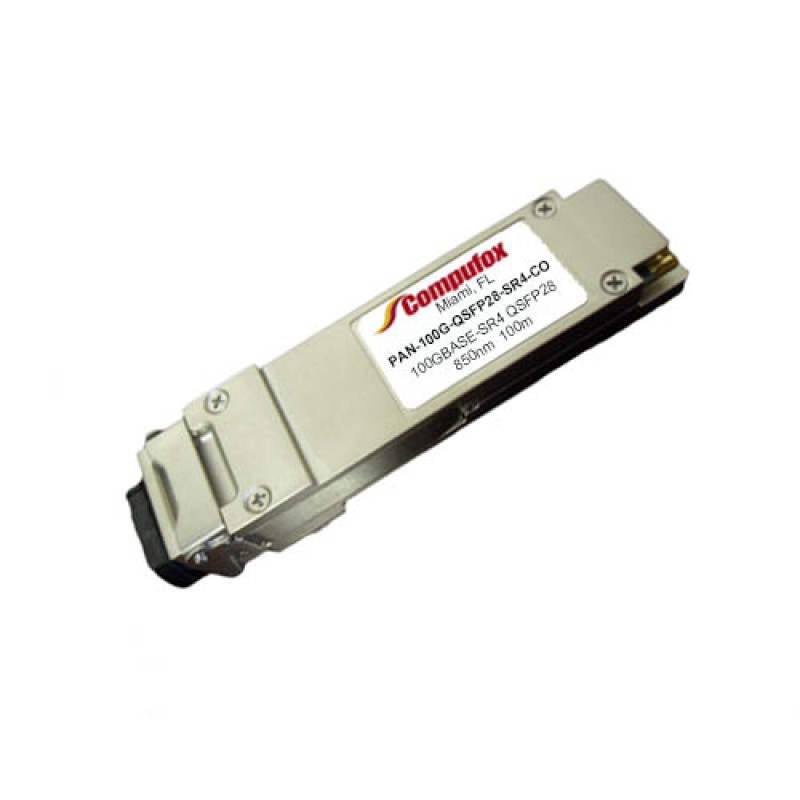

Palo Alto PAN-100G-QSFP28-SR4 Compatible 100GBase-SR4 QSFP28 Transceiver (MMF, 850nm,100m, MPO, DOM)
$85.00
- Product Code: PAN-100G-QSFP28-SR4-CO
- Availability: In Stock
Available Options
Palo Alto Networks PAN-100G-QSFP28-SR4 Compatible 100GBase-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm,100m, MPO, DOM).
Specifications
|
Form
Factor |
QSFP28 |
Data
Rate |
100Gbps |
|
Wavelength |
850nm
|
Distance
|
70m@OM3/100m@OM4 |
|
Connector |
MTP/MPO-12 |
Media |
MMF |
|
Transmitter
Type |
VCSEL
850nm |
Receiver
Type |
PIN |
|
TX
Power |
-8.4~2.4dBm |
Minimum
Receiver Power |
-10.3dBm |
|
Powerbudget |
1.9dB |
Receiver
Overload |
2.4dBm |
|
Typical
Power Consumption |
≤2.5W |
Extinction
Ratio |
＞3dB |
|
DDM/DOM |
Yes |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
IEEE
802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI |
