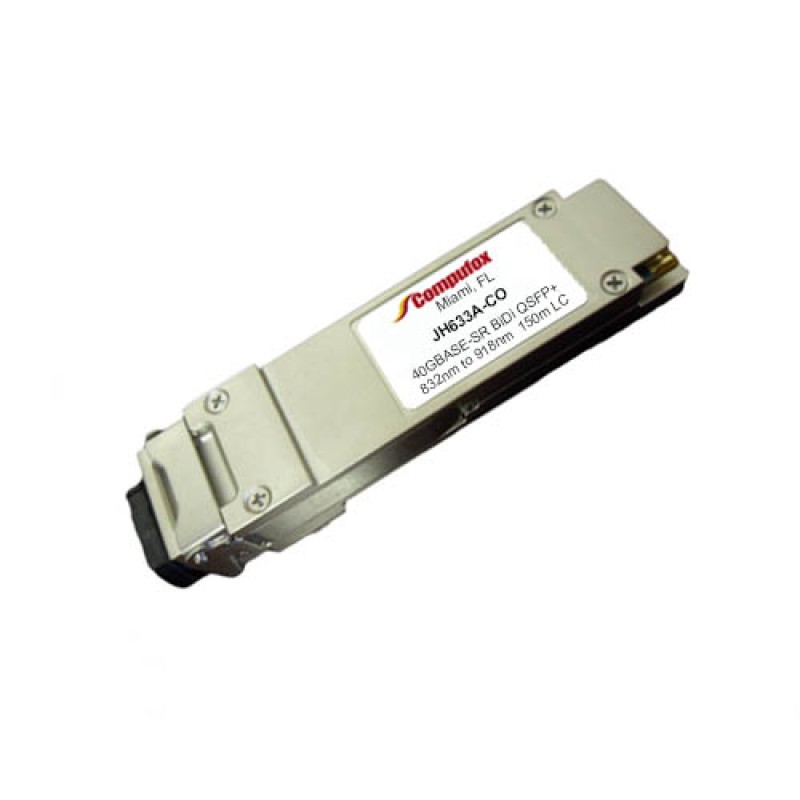

HPE JH633A Compatible 40GBASE-SR BiDi Duplex Transceiver (MMF, 832nm - 918nm, 150m, LC)
$245.00
- Product Code: JH633A-CO
- Availability: In Stock
Available Options
HPE JH633A Compatible 40GBASE-SR Bi-Directional Duplex Optical Transceiver Module (MMF, 832nm - 918nm, 150m, LC).
Specifications
|
Form
Factor |
QSFP+ |
Max
Data Rate |
40Gbps |
|
Wavelength |
832nm
- 918nm |
Max
Cable Distance |
150m@OM4
|
|
Connector |
Duplex
LC |
Media |
MMF |
|
Transmitter
Type |
VCSEL
850/900nm |
Receiver
Type |
PIN |
|
TX
Power |
-4~5dBm |
Receiver
Sensitivity |
<-6dBm |
|
Powerbudget |
6dB |
Power
Consumption |
≤3.5W |
|
Extinction
Ratio |
3.5dB |
DDM/DOM |
N/A |
|
FEC
Function |
Supported |
CDR |
None |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
40G
Ethernet, IEEE802.3ba-2010, MSA Compliant |
