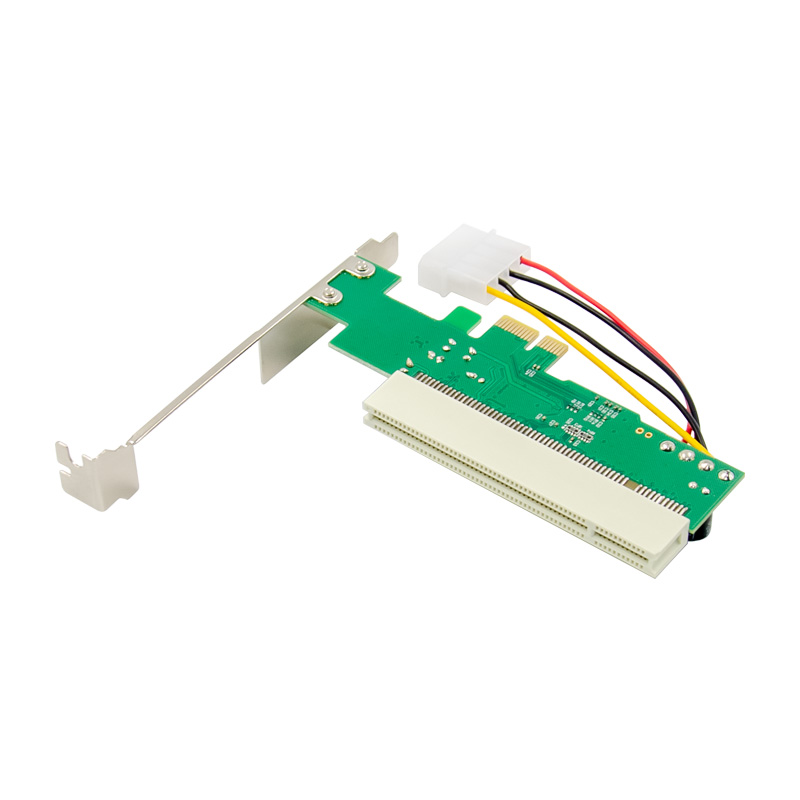

PCIe x1 to PCI Adapter Card with ASM1083 Chipset
$14.00
- Product Code: ADP-PX1-PCI
- Availability: In Stock
This ADP-PX1-PCI PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
Features
- PCI Express single-lan port
- Provide 4-pin connection of power
- PCI v.3.0:32bits,up to 66MHz
- Low power - 400mW
- Accord with version 1.0, compatible version 2.3
- PCI Express 2.5Gbps Database transmition
- PCI Express Base Specification, Revision 1.0a
- PCI Express to PCI Bridge Specification, Revision 1.0
- PCI Express Card Electromechanical Specification, Revision 1.0a
Specifications
- Chipset: Asmedia ASM1083
- Bus Interface: PCI Express x1, Revision 1.0a
- Connectors: PCI v.3.0: 32bits, up to 66MHz
- Power: Provide 4-pin connection of power (Low power - 400mW)
- System Supported: Windows 8.1/Win 8/Win 7/Vista/XP/Server 2003/2000/NT/ Dos/ Linux
