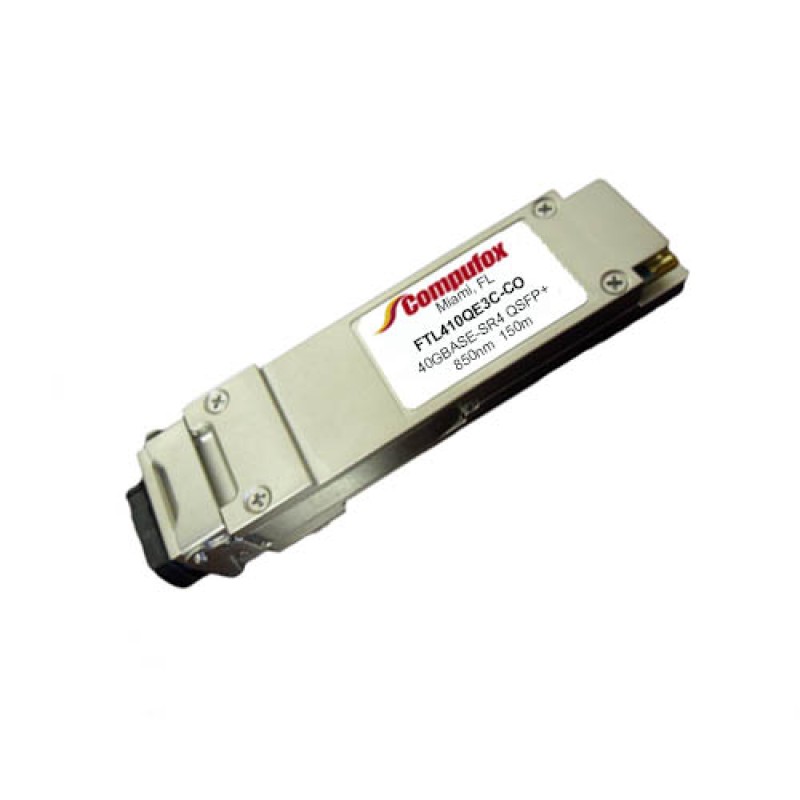

Finisar FTL410QE3C Compatible 40GBase-SR4 QSFP+ Transceiver (MMF, 850nm, 150m, MTP/MPO, DOM)
$39.00
- Product Code: FTL410QE3C-CO
- Availability: In Stock
Available Options
Finisar FTL410QE3C Compatible 40GBase-SR4 QSFP+ Transceiver (MMF, 850nm, 150m, MTP/MPO, DOM).
The QSFP+ transceiver is probably the most widely-used and most popular 40G transceiver for short distance transmission, mostly link lengths of 100m and 150m on OM3 and OM4 multimode fibers. It is an MPO-interfaced parallel fiber optic transceiver with a 4x10G transmission pattern. The 40GBase-SR4 can achieve simultaneous 40G signal sending and receiving with the help of four 10G SFP+ lanes in one module. You can usually see this type of transceiver being used in data centers to interconnect two switches with 12 lane ribbon cables.
Specifications
|
Form
Factor |
QSFP+ |
Max
Data Rate |
41.25Gbps
(4x 10.3125Gbps) |
|
Wavelength |
850nm
|
Max
Cable Distance |
150m@OM4/100m@OM3
|
|
Connector |
MTP/MPO-12
Male |
Media |
MMF |
|
Transmitter
Type |
VCSEL |
Receiver
Type |
PIN |
|
TX
Power |
-7.1~1.9dBm |
Receiver
Sensitivity |
<-10.3dBm |
|
Powerbudget |
3.5dB |
Receiver
Overload |
2.4dBm |
|
Power
Consumption |
<1.5W |
Extinction
Ratio |
>3dB |
|
Host
FEC |
Supported |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
IEEE
802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
