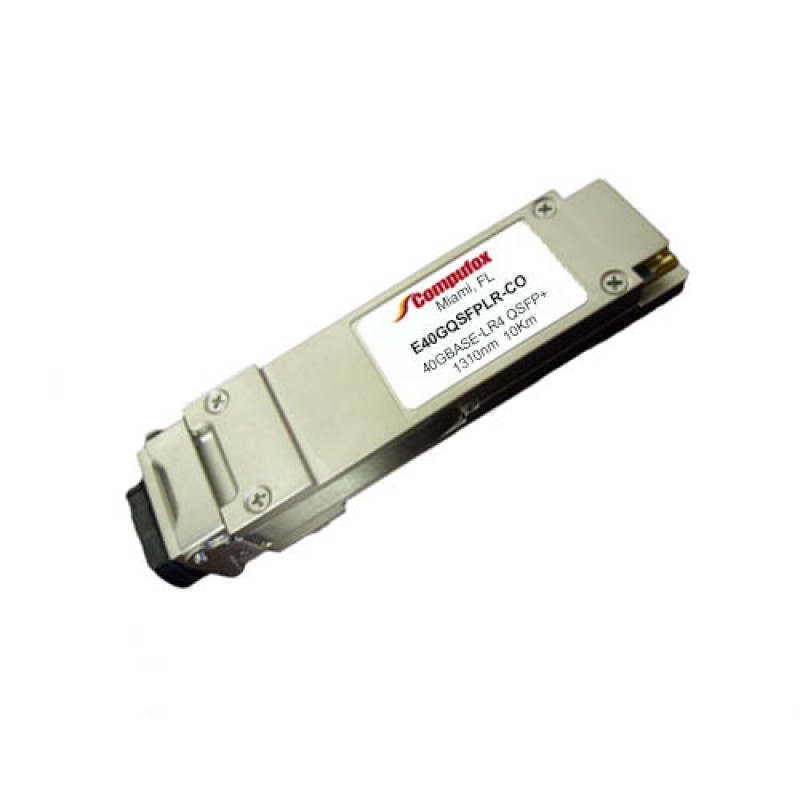

Intel E40GQSFPLR Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
$195.00
- Product Code: E40GQSFPLR-CO
- Availability: In Stock
Available Options
Intel E40GQSFPLR Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).
While the 40GBase-SR4 is used for short distance transmission, the 40GBase-LR4, on the other hand, is for long range transmission of data. Though they use the same multi-lane technology, the LR4 differs in that instead of using a single fiber strand for each lane, it multiplexes all four sending lanes onto one fiber strand and all four receiving lanes onto another single fiber strand. This transceiver type supports link lengths of up to 10kms via a single-mode fiber cable with duplex LC connectors.
Specifications
|
Form
Factor |
QSFP+ |
Data Rate |
40Gbps |
|
Wavelength |
1310nm
|
Max
Cable Distance |
10km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
DFB
CWDM |
Receiver
Type |
PIN |
|
TX
Power |
-7~2.3dBm |
Receiver
Sensitivity |
<-11dBm |
|
Powerbudget |
4dB |
Receiver
Overload |
2.3dBm |
|
Power
Consumption |
≤3.5W |
Extinction
Ratio |
>3.5dB |
|
Host
FEC |
Supported |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
OTN
OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant |
