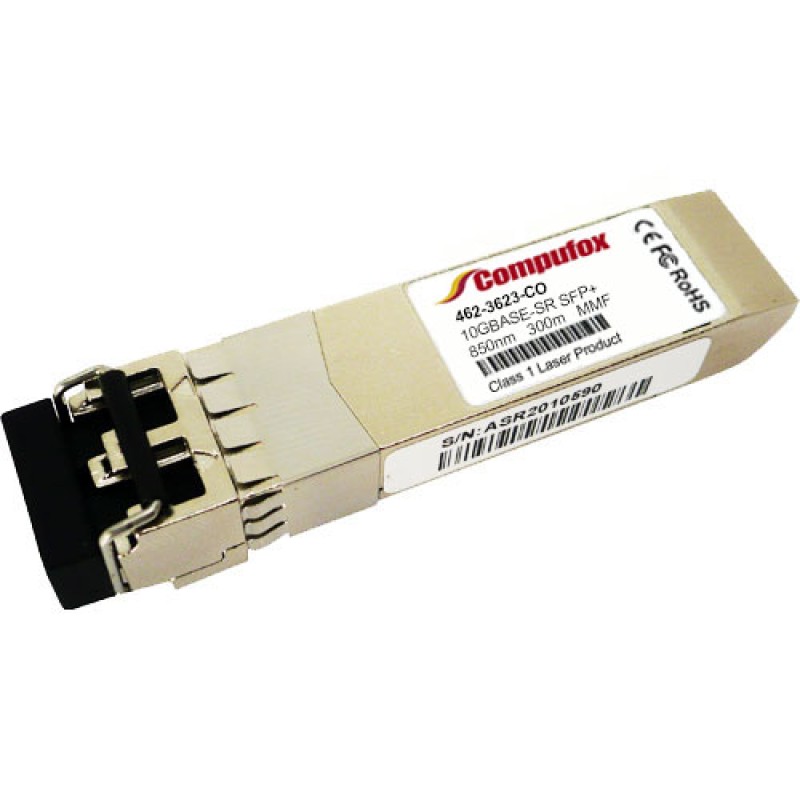

Dell 462-3623 Compatible 10GBASE-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM)

$18.00

  • Product Code: 462-3623-CO
  • Availability: In Stock

Available Options

Dell 462-3623 Compatible 10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM).


Specifications

Form Factor

SFP+

Data Rate

10Gbps

Wavelength

850nm

Max Cable Distance

300m@OM3/400m@OM4

Connector

Duplex LC

Media

MMF

Transmitter Type

VCSEL

Receiver Type

PIN

TX Power

-7.3~-1dBm

Receiver Sensitivity

< -11.1dBm

Powerbudget

3.8dB

Receiver Overload

-1dBm

Typical Power Consumption

<1W

Extinction Ratio

>3dB

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
